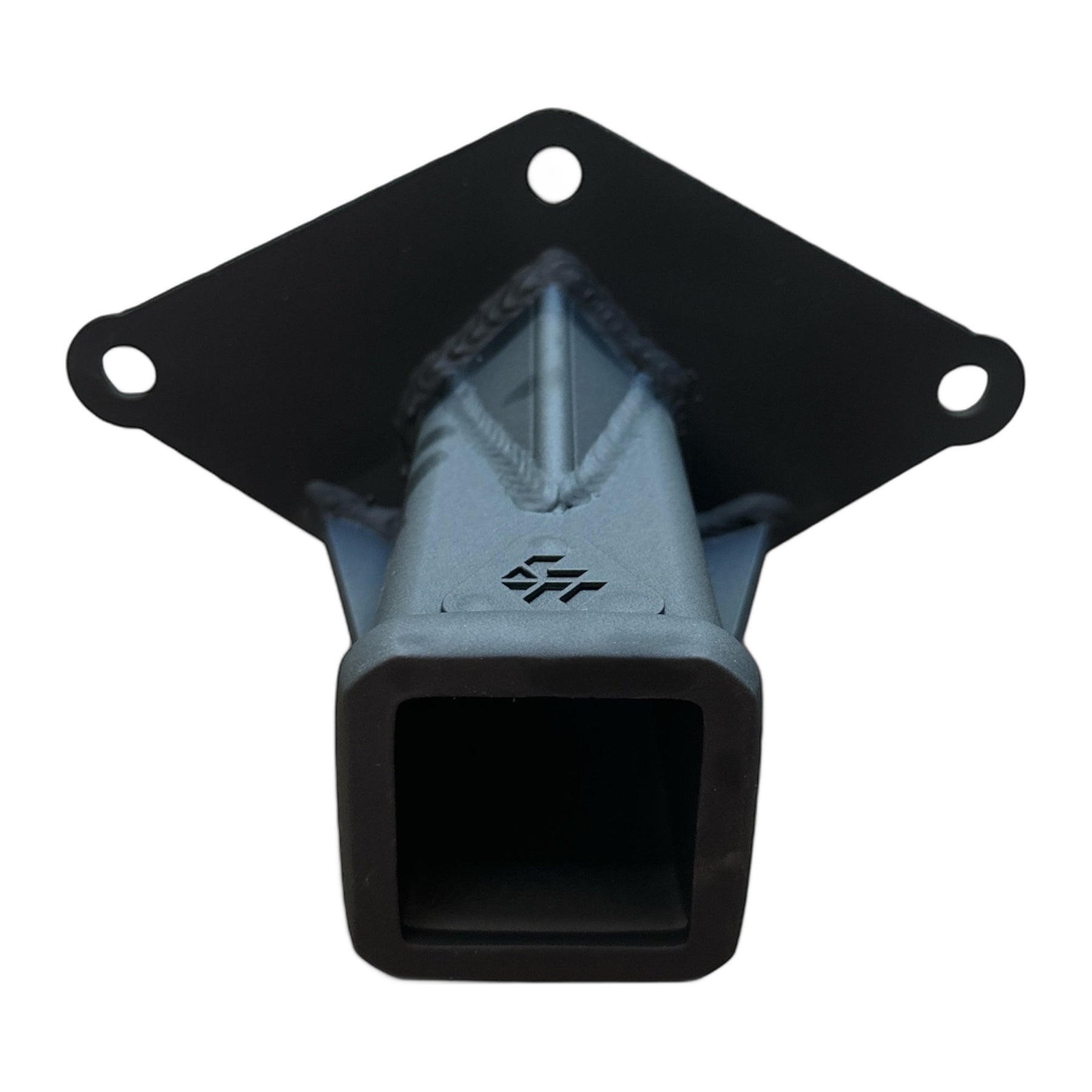

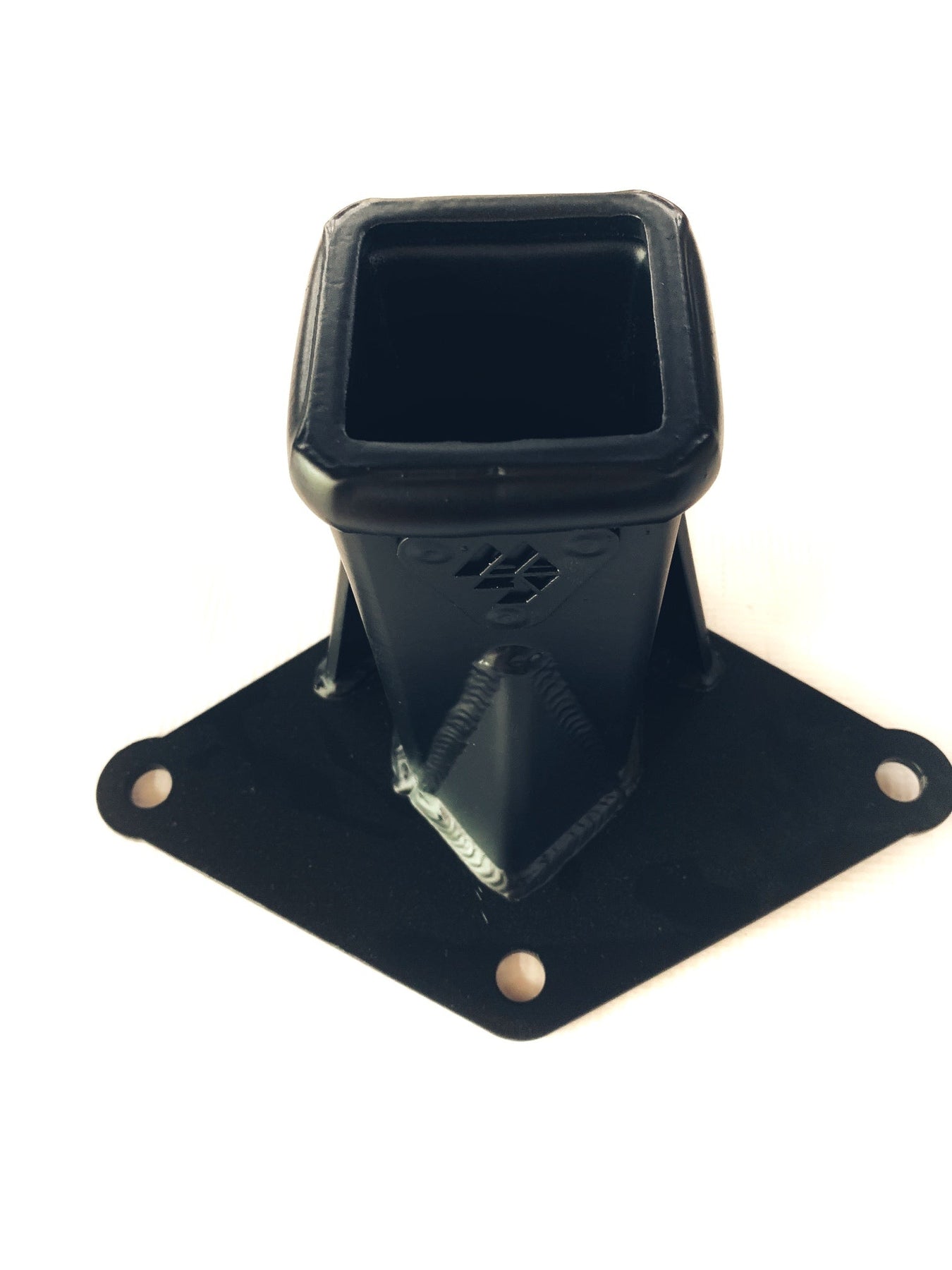

L&W Fab Receiver Hitch Add On Plate for L&W Fab Radius Rod Plates

L&W Fab Receiver Hitch Add On Plate for L&W Fab Radius Rod Plates

Already running an L&W Fab radius rod plate and wish you had a place to plug in a hitch accessory? This add on plate gives you a receiver hitch that works with L&W Fab steel and billet radius rod plates. L&W Fab also says it can be used with their bumpers. It is built from thick steel and comes finished in black.

WHAT IT DOES

On an SXS, the radius rod plate is the bracket at the rear of the machine where the rear radius rods attach to the frame. L&W Fab makes steel and billet versions of that plate. This add on adds a receiver hitch to that setup.

A receiver hitch is the square tube you see on the back of trucks. It does not tow anything by itself; you slide an accessory into it (a hitch step, a cargo carrier and so on) and lock it in place with a pin. This one accepts the common 2 inch size used by most hitch accessories, held in with a 5/8 inch pin.

FEATURES

• Adds a receiver hitch to an L&W Fab steel or billet radius rod plate
• Can also be used with L&W Fab bumpers
• Made from 1/4 inch thick HRPO steel (hot rolled, pickled and oiled steel, a clean, scale free steel that is good for welding and coating)
• Receiver sticks out 5-15/16 inches (L&W lists this same protrusion for every version they make)
• Accepts a standard 2 inch receiver accessory with a 5/8 inch pin
• Finished in black

DETAILS - PLEASE READ

• This is an add on part. It is made for owners who already have an L&W Fab steel or billet radius rod plate (or an L&W Fab bumper). It is not a stand alone hitch for a factory machine.
• Only available in black. No other colors or raw finish are offered.
• L&W Fab does not list a ball mount, hitch pin or any other accessory as included.
• L&W Fab does not list a towing rating for this hitch. Always stay within your machine's factory towing and tongue weight limits.
• If you are not sure whether your radius rod plate or bumper is an L&W Fab part, call us before ordering.

See the Vehicle Fitment section for the exact years and models this fits.
