L&W Fab 1 Heim Radius Rods for 2014-2023 Polaris RZR XP 1000, XP Turbo & RS1

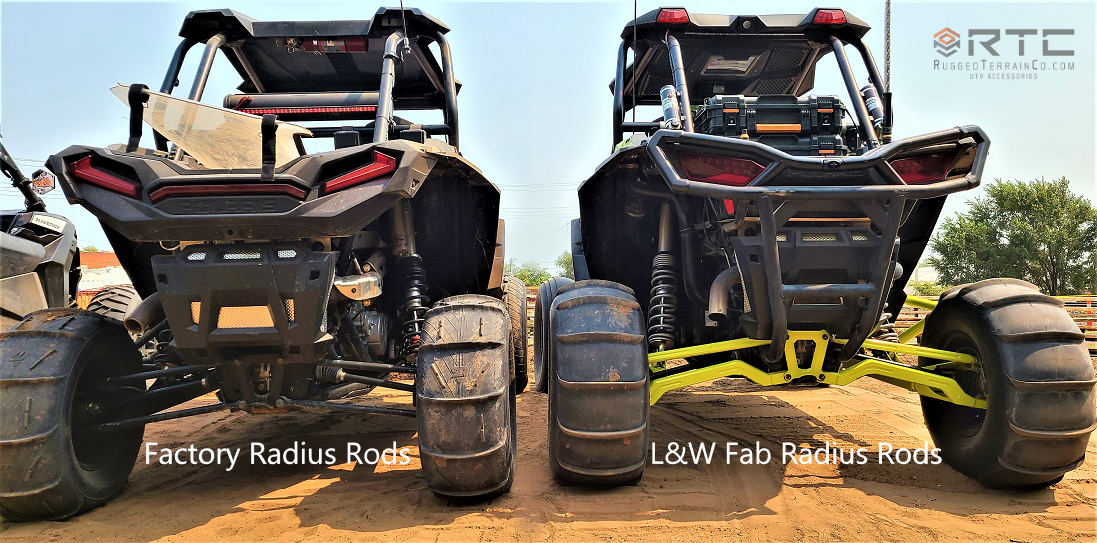

These are L&W Fab 1 heim radius rods for the 2014-2023 Polaris RZR XP 1000, 2016-2021 XP Turbo and 2018-2022 RS1. They replace the factory radius rods with 6061 aluminum rods made in the USA, with high clearance lowers and a lifetime warranty. All the spacers needed for install are included. This listing is for 1K/Turbo/RS1 models only.
WHAT RADIUS RODS DO

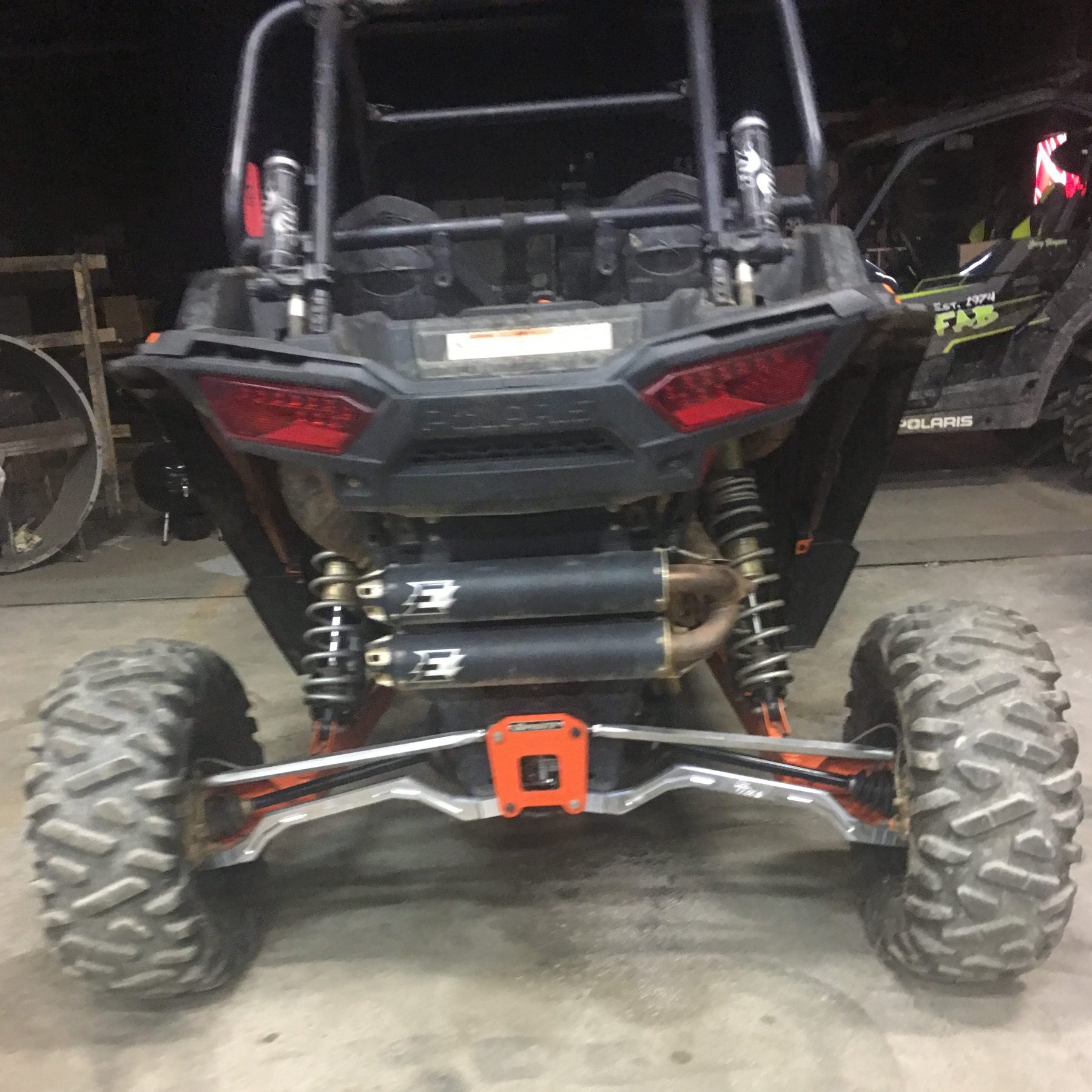

On the rear of your RZR, each trailing arm has an upper and a lower radius rod that run inward to a radius plate on the frame. These rods hold the rear wheel's alignment as the suspension moves up and down.

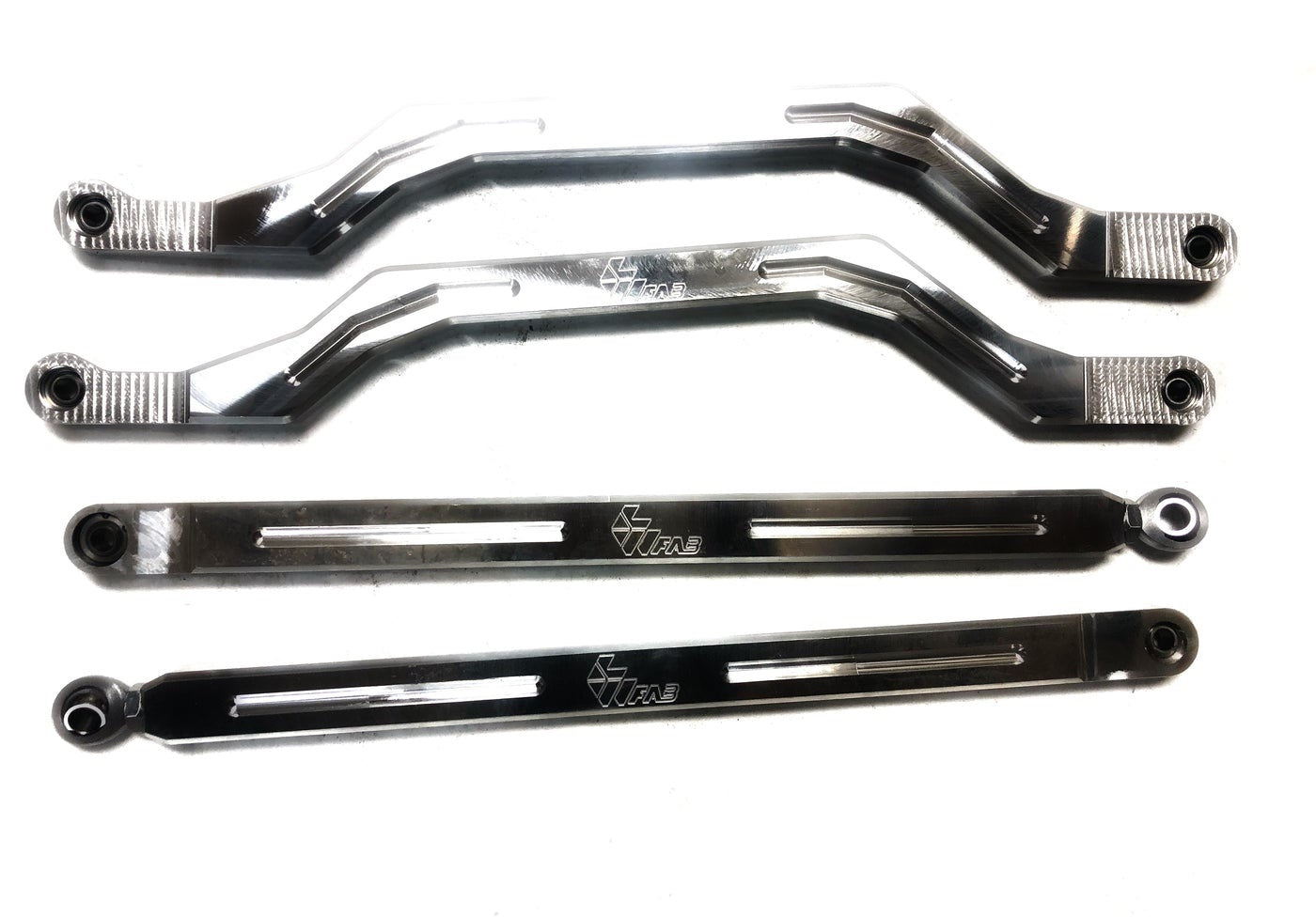

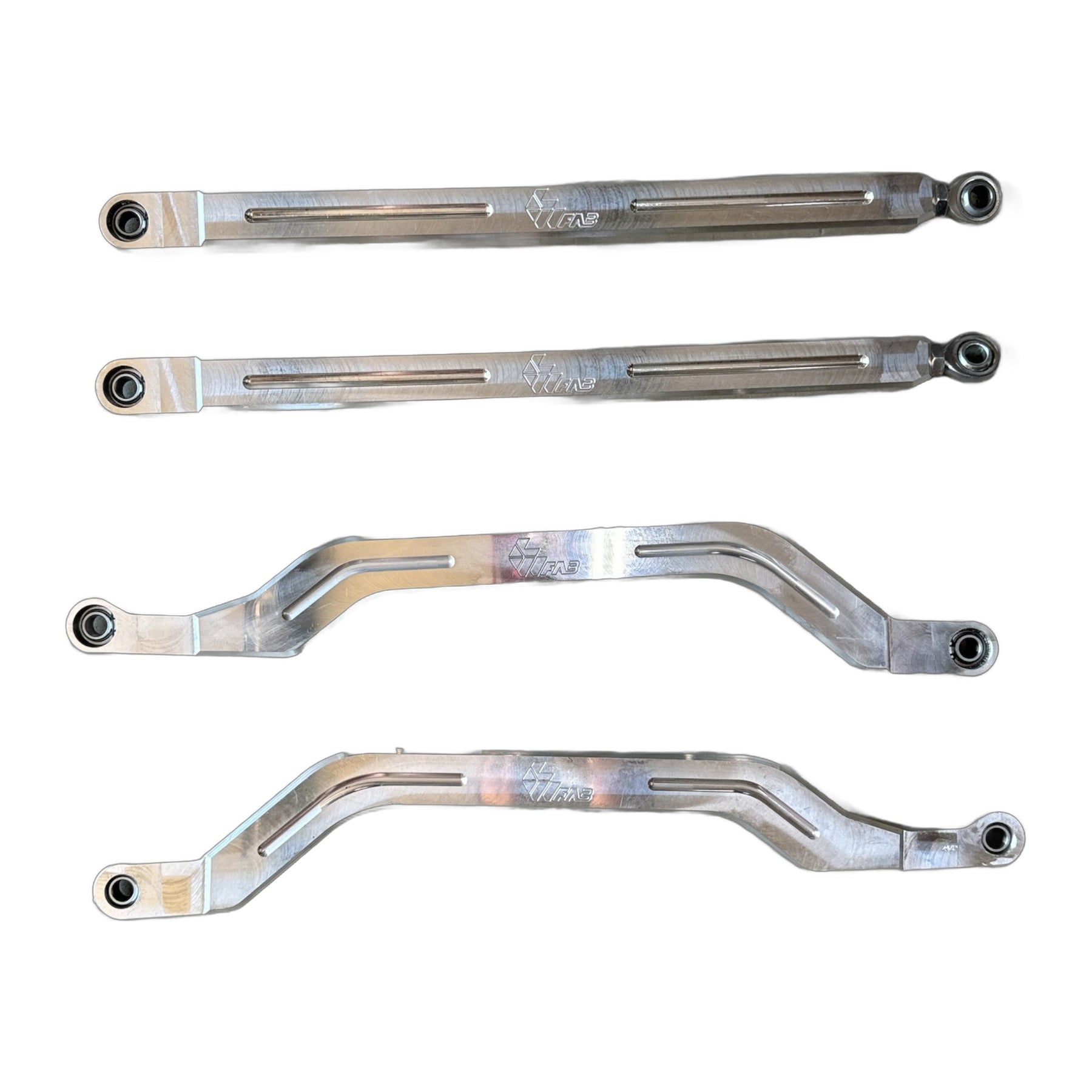

A 1 heim radius rod uses a heim joint (a ball style rod end) at one end. L&W Fab groups its 1 heim and 2 heim upper rods as its adjustable uppers. The high clearance lowers are shaped to give more room under the rod so it is less likely to catch on obstacles.
WHAT'S INCLUDED
- All spacers needed for install
FEATURES
- 6061 aluminum
- Made in the USA

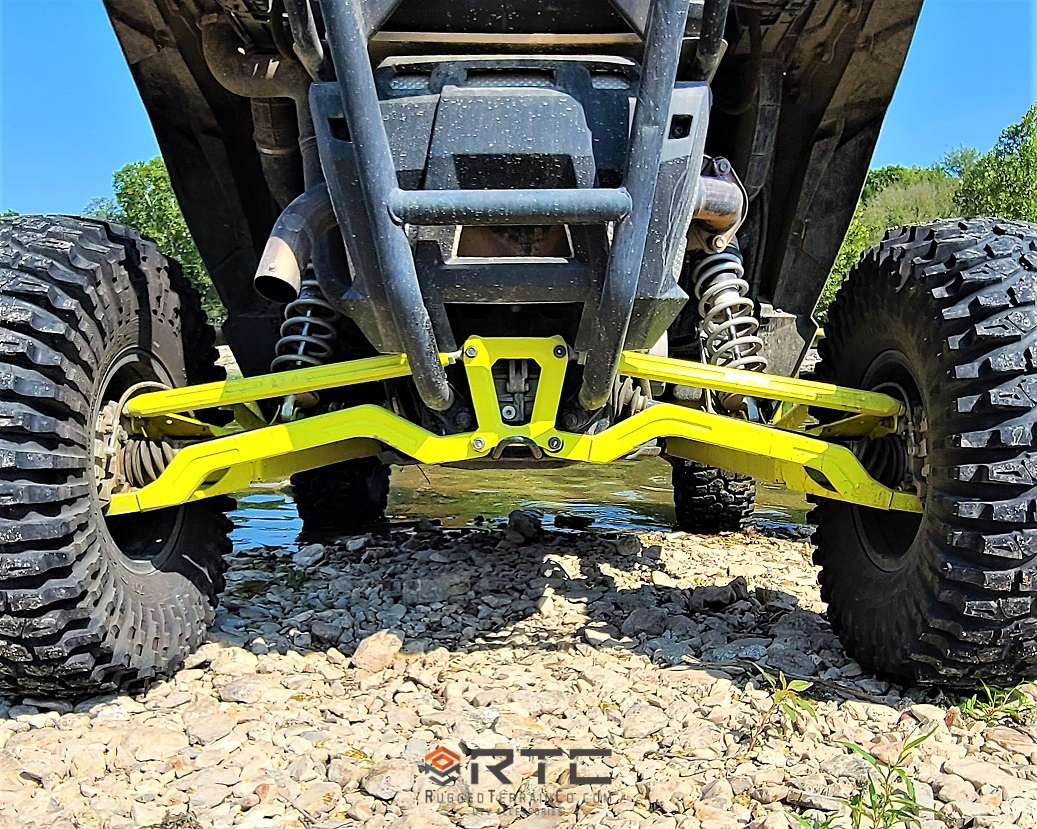

- High clearance lowers
- Includes all spacers needed for install
- Lifetime warranty
CHOOSING YOUR OPTIONS
- Color: 17 choices. Billet is the bare aluminum with no powder coat. All other choices are powder coated in that color, a durable baked on finish.
- Location: Lower gets you the lower rods, Upper gets you the upper rods, and Full Kit gets you both uppers and lowers.
- Bolt Size: 10mm is for 2014 to early 2017 models. 12mm is for late 2017 to 2023 models. If you have a mid 2017 and are not sure, check the socket size on your radius rod bolts: a 15mm socket means you need the 10mm option, and an 18mm socket means you need the 12mm option.
DETAILS - PLEASE READ
- Does not include the radius plate. It is sold separately.
- If you have Gen3 SuperATV portals, you need the upper adjustable radius rods (1 heim or 2 heim). Without them the suspension does not have enough room to travel and can bust the portal bracket ear.
- For 1K, Turbo and RS1 models only. See the Vehicle Fitment section for each model's years.
- Lifetime warranty.
See the Vehicle Fitment section for the exact years and models this fits.
