Installation Instructions not currently available online

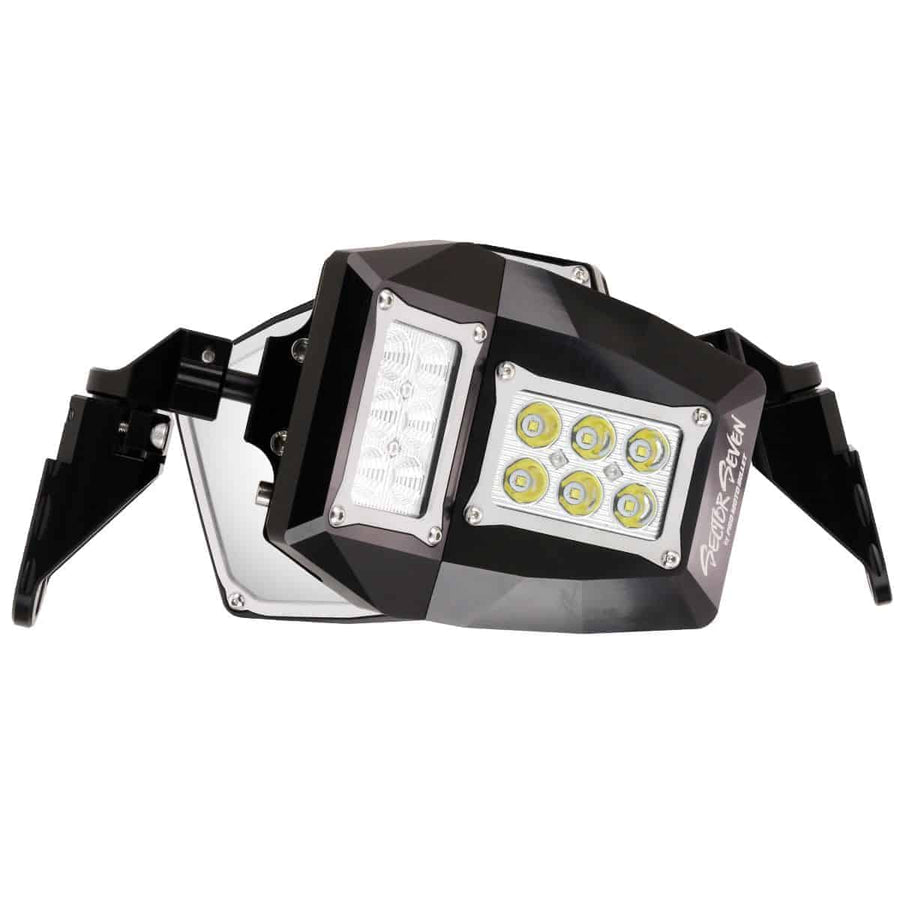

Sector Seven Spectrum LED light mirrors will change the way that you ride, both day and night! CNC machined from 6061 billet aluminum for strength and longevity, the lighted, angular design allows for a 210-degree field of vision in front of you, while the convex mirror provides a maximum wide rear view. The adjustable breakaway action allows you to determine arm strength, while the ball joint adjustable mirror enables adjustment. With 180-degree rotation to assist in rear illumination and a removable bevel to provide customizable color, Spectrums are a versatile, superior light mirror combination, making them the upgrade that you will wonder how you ever lived without.
**Current delivery time is about 8 weeks from the time of order
Features:
- 8,000 Raw lumens of light
- Convex mirror for wide-range rear view
- 2-wire open lead for easy wiring - Harness with rocker switch sold separately here
- Adjustable breakaway action
- CNC Machined from 6061 billet aluminum
- Removable bezel for color customization
- Sold in pairs
- Designed, manufactured, and assembled in the U.S.A.
- Fits 1/2" cage tubing
Specifications:
Size: |
8.8″L x 5.5″W x 3″H |
Weight: | 3.6 lbs. |
Optics Type: | Flood |
Watts: | 120w |
Amp Draw: | 8.8 amp at 14.4 volts |
Peak Intensity: | 20,268 cd |
Raw Lumens: | 4,000/ea. 8,000/pair |
Beam Distance: | 284 m |
Illuminance: | 21.76 lux |
Voltage: |
12v DC |
Installation Instructions:
Spectrum with 1/2″ Spud
Weight | 7.8 lbs |
---|---|
Dimensions | 11.0 × 7.13 × 6.25 in |
Roll Cage Bung Mount – 1/2″ Receiver
Weight | 1.15 lbs |
---|---|
Dimensions | 8.88 × 5.75 × 1.63 in |
Bung Mount Ultimate Spacer Fit Kit
Weight | 0.75 lbs |
---|---|
Dimensions | 8.88 × 3.0 × 0.88 in |
