Features

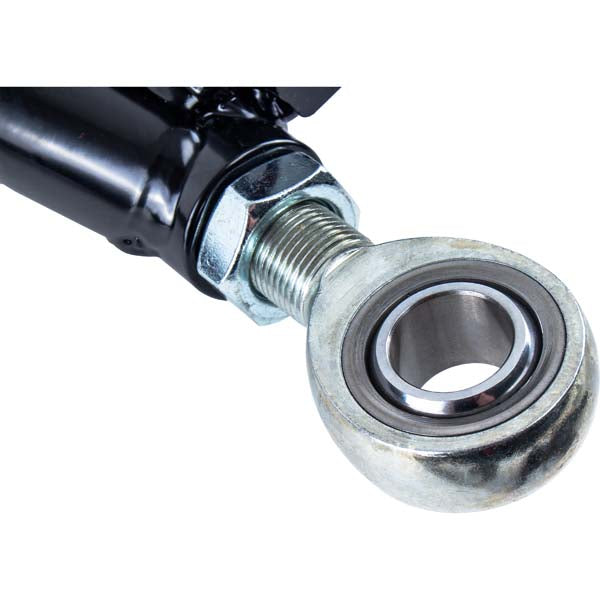

• Adjustable heat-treated collars for camber adjustability with a 7/8” thread
• Raked forward 1.5"
• Over 3 degrees of camber adjustment in each direction
• Heavy duty ball joint brackets to eliminate deformation issues, Keller ball joint compatible
• Extreme duty 1.5” x .120” DOM steel construction
• More added ground clearance compared to OEM lower arms
• Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)
• Powder Coated

Heavy Duty Strength

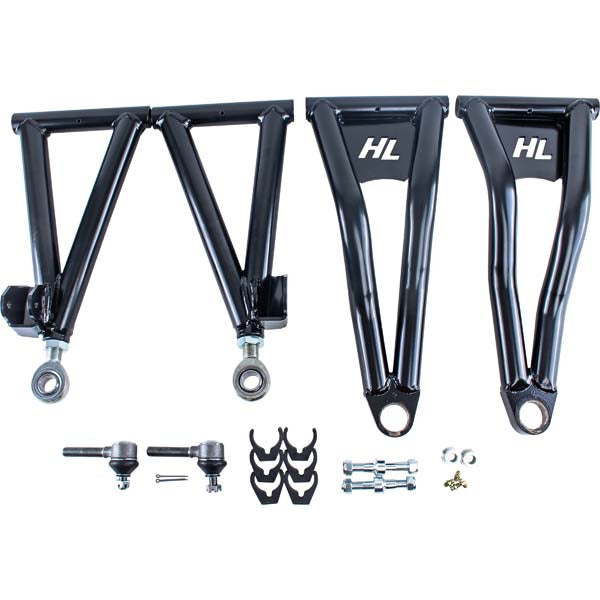

High Lifter’s new heavy duty control arms add more support than factory. Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride. High Lifter arms are constructed out of 1.5” DOM with .120 wall tubing. This is a 50% increase in size and a 70% increase in steel thickness for added durability and strength.

Built in Adjustability

The lower arms also feature an adjustability component. This kit comes packaged and preadjusted to the factory position, and factory bushings and caps should be used for installation.

Increased Ground Clearance

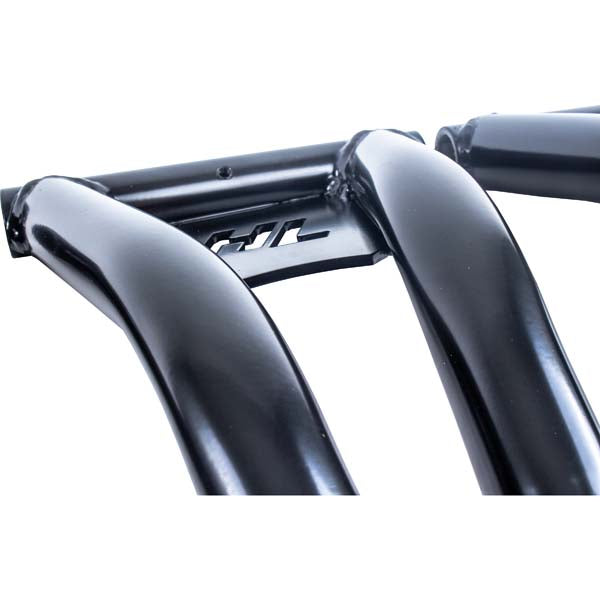

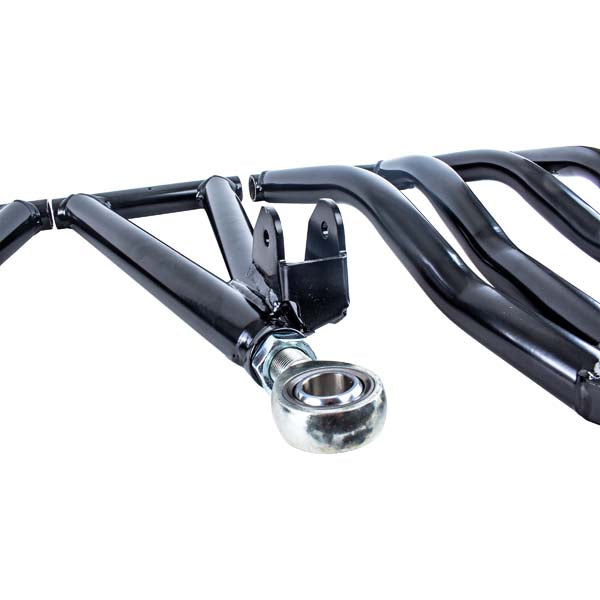

We maximized ground clearance by strategically arching the lower control arm with double and TRIPLE bends. This unique design allowed us to get an additional 1.75” of ground clearance to avoid impacting those nasty trail obstacles. These bends maintain the factory geometry, which helps reduce wear on components like axles and tie rods. Our forward arms allow you to run larger tires without a suspension lift. We’ve improved the upper control arm by repositioning the sway bar tab. This will reduce the extreme angles places on the sway bar links and reduce wear.

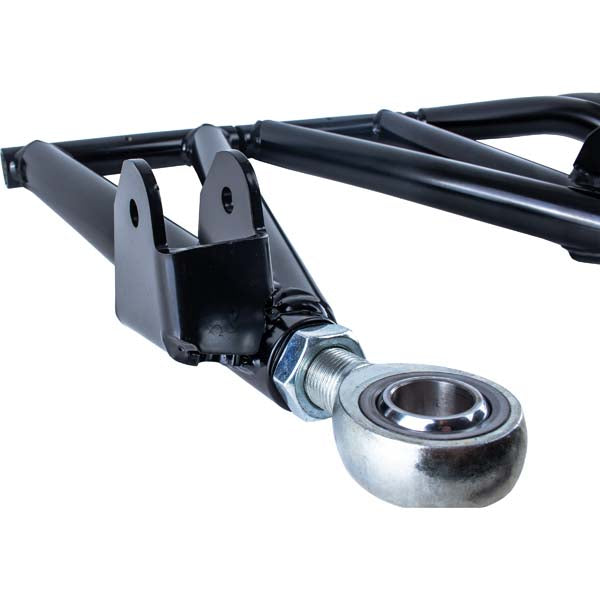

Reinforced Ball Joints Brackets

Portals and large tires apply torque that can distort the ball joint bracket, leading to failure of the arms. With over 130% increase in the ball joint mounting area, we are helping to prevent breakdown or “egging” of the mounting bracket.

Optional Preinstalled Ball Joints

High Lifter’s service team uses a hydraulic press to install the ball joint with the correct pressure and alignment, also making sure the clip is fully seated and secured. Purchasing control arms with the ball joints already installed adds to easy installation and prevents damage due to improper installation, which is not covered by High Lifter’s Lifetime Warranty.
