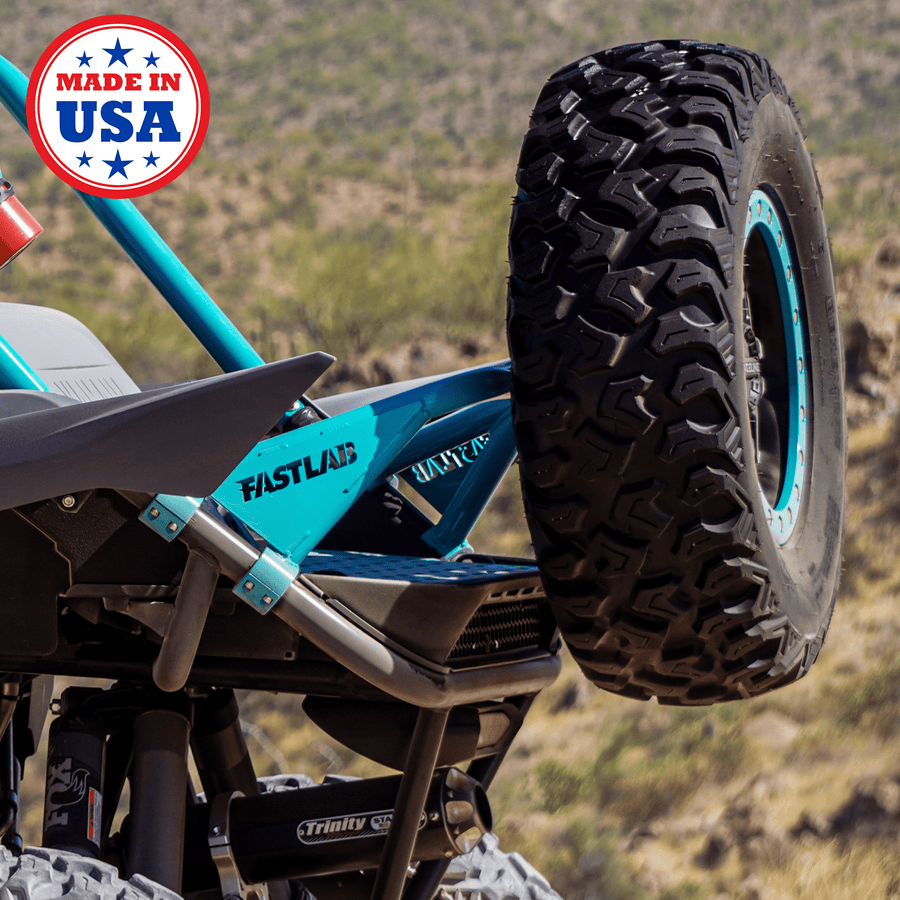

2016-current FastLab YXZ spare tire carrier. This spare tire carrier mounts to the rear factory frame section. Because of this, it will work with all aftermarket cages that retain the factory frame section. The position of the wheel and tire is intentionally over the back of the car as it moves the Center of Gravity rearward to reduce the YXZ's tendency to buck in the rear.  It can fit up to a 32" tire on any backspacing of wheel, and has both 4x110 and 4x156 bolt patterns.

The updated version includes a 2" Receiver Hitch, which is designed to be used with our StorFast modular accessories. This is NOT meant to be used as a tow hitch or tie down point. The best YXZ tire carrier on the market just got better!

PROUDLY MADE IN THE USA

Your Purchase Supports American Manufacturing!

NOTE: Since the hub mount accommodates both YXZ bolt patterns, the customer is required to install the supplied wheel studs.  The recommended method is to use a press.  The next best option is the Lisle 22800 wheel stud installer or simply an M12 x 1.25 Nut and washers to pull the stud in.  If you are uncomfortable with the wheel stud installation, take the tire carrier to your local mechanic. Requires minor trimming of bed section.

Contact us for custom powdercoat options

MAXIMUM TOTAL WEIGHT CAPACITY OF THE TIRE CARRIER = 100 lbs

Accessories:

•StorFast Molle Modular System

Kit includes:

•Powder coated spare tire carrier

•4 x M12x1.25 Wheel Studs (OEM pitch)

•Mounting hardware

Platform compatibility:

•YXZ 2016+

•Fits with 2019+ GYTR Rear Cargo Box

INSTALL GUIDE
