Name: Yamaha YXZ 1000 Dual Sport Long Travel Suspension Kit
Brand: HCR Racing
SKU: YXZ-02400
Price: 7999.99 USD
Availability: InStock

×

All Options are Required.

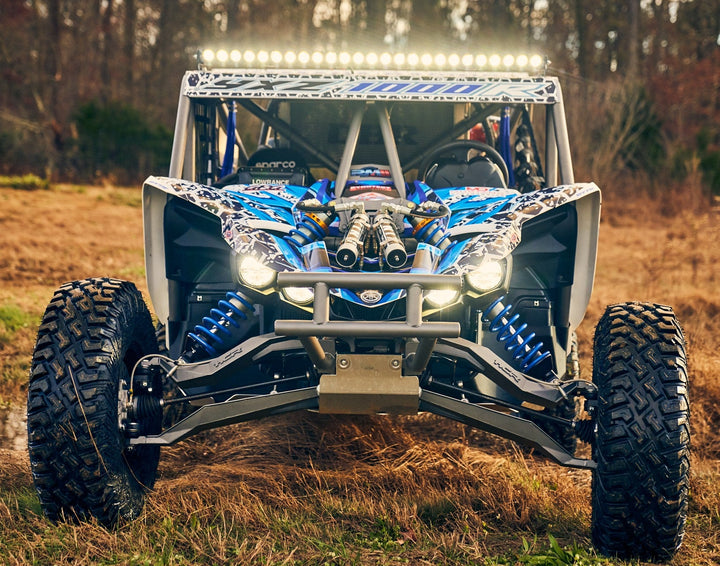

Yamaha YXZ 1000 Dual Sport Long Travel Suspension Kit

Quantity

Installation Instructions not currently available online

PART #YXZ-02400

HCR Racing is proud to introduce the +4 YXZ Complete Long Travel Suspension System to it’s product portfolio. Following the style and strength of HCR’s recent releases, with a modern edge.

Kit Features:

Usable Travel : Over 20 front & Over 21” Rear Travel

+4 inches wider per side; Additional 8 inches of track width

+4 inches of wheel base added ; 2 front , 2 rear

Fiber Laser Cut construction for precise fit and finish

CNC'd 4130 heat treated billet mounting points for increased integrity

Angled catacomb design for optimal force distribution

RCV +4 extended axle bars. Heat Treated & through hardened

Custom King 2.5 HCR race Series Shocks Off -road shocks

Unique trailing arm inspired design for minimal added weight and increased strength.

High Clearance Boxed A-Arm Design

Each piece is carefully tig welded for strength and aesthetics

OEM ball joints are reused to maximize low speed steering, ease & smooth travel with less maintenance

compatible with stock wheels

High-Clearance Arms provide an increase of 1.25” in ground clearance

100% Bolt-on installation using factory mounting points

Larger front tube mounts are 1.25” in diameter with Delrin bushings for increased strength and durability

4 Front A-arms
4 Rear Control arms
4 RCV Extended Axle Bars
1 Stock Series Shock Tower
1 set of tie rod extensions
Hardware pack
YXZ Installation guide
