Baja Designs XL80 Auxiliary Light Pod Pair

SKU: 677803
Baja Designs XL80 Driving Combo Clear Lens Auxiliary Light Pod  - Pair
Baja Designs XL80 Driving Combo Amber Lens Auxiliary Light Pod  - Pair
Baja Designs XL80 Wide Cornering Clear Lens Auxiliary Light Pod  - Pair
Baja Designs XL80 Wide Cornering Amber Lens Auxiliary Light Pod  - Pair

Baja Designs XL80 Auxiliary Light Pod Pair

SKU: 677803
Regular price $789.95
/
Shipping calculated at checkout.


Universal

Instruction Video

Baja Designs XL80 Auxiliary Light Pod - Pair

Two is always better than one, right? We think so, which is why we’re offering a pair of XL80 LED auxiliary lights with wiring harness for one low price. Take your off-road lighting to the next level with BD’s XL80. In terms of sheer power-to-size, few lights match the XL80. Four Cree LEDs inside push out 9,500 lumens of brilliant illumination. The combination of 9,500 lumens per light and a small profile makes them a fantastic option for forward-projection lighting

The XL80 offers a 20 percent dimming feature, a powder-coated housing and an anodized bezel for long-term durability. The XL80 features a powerful LED for greater visibility and increased brightness. As always, Baja Designs offers a 30-day Satisfaction Guarantee, and Limited Lifetime Warranty. Both the driving and cornering LED lights come in an optional amber color for use as running lights or fog lights. USPTO Reg No. 5,766,659

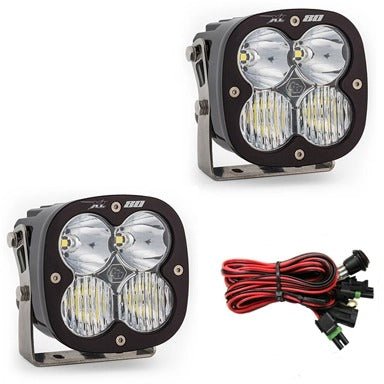

Includes:

  • 2x XL80 LED Light
  • 2x Mounting Bracket
  • 1 Wiring Harness



Specifications:

Amperage Rating (A) 5.500
Average Rated Life (hr.) 49,930
Beam Pattern Driving/Combo
Bezel Material Billet Machined Aluminum
Brightness (Lumens) 9022
Description Driving/Combo; Clear; Pair
Housing Color Black
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Lens Color Clear
Lighting Modes Hardcoated Polycarbonate
Light Quantity 2
Lens Material High Beam/Dimming Feature (20%)
Lighting Quantity 4
Lighting Type Cree LED
Lighting Technology Forward Projecting
Mounting Hardware Included Yes
Mounting Hardware Material Stainless Steel
Overvoltage Protection Built-In
Product Type XL80 LED Light Pod Pair w/ Wiring Harness
Universal or Specific Universal
Wattage (W) 75.900
Wiring Harness Included Yes

Standards & Compliance

Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Water Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Impact Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)


Baja Designs Features:
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color



Lens Patterns:

Baja Designs Driving Combo Lens Pattern

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)



Baja Designs Wide Cornering Lens Pattern

Wide Cornering - This is the Cornering zone, which provides light in your peripheral view in order to prevent tunnel vision. Illuminate obstacles or animals entering the trail to better gauge terrain while making a turn. Cornering light is necessary to drive comfortably at speeds.
