Rugged Radios Military Grade Nexus Replacement Jack TJ-102

Rugged Radios SKU: NEXUS-TJ102-BLUE
Rugged Radios Military Grade Nexus Replacement Jack TJ - 102 - Rugged Terrain
Rugged Radios Military Grade Nexus Replacement Jack TJ - 102 - Rugged Terrain
Rugged Radios Military Grade Nexus Replacement Jack TJ - 102 - Rugged Terrain
Rugged Radios Military Grade Nexus Replacement Jack TJ - 102 - Rugged Terrain

Rugged Radios Military Grade Nexus Replacement Jack TJ-102

Rugged Radios SKU: NEXUS-TJ102-BLUE
sold in last hours
/
Shipping calculated at checkout.
  • Safe & Secure Checkout
  • 30 Day Returns
  • In stock, ready to ship
  • Inventory on the way

Installation Instructions not currently available online

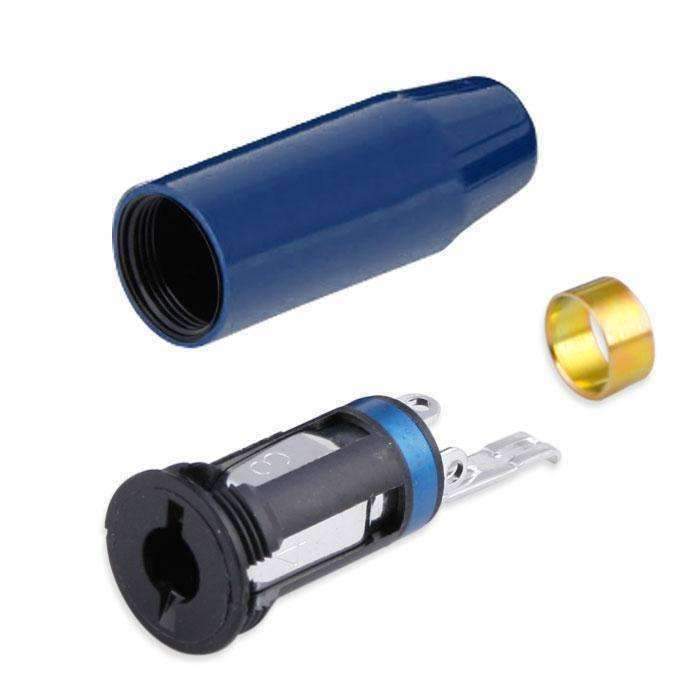

In-Line Jack, Contacts Molded Into a Plastic Body, Accommodates Larger Cable Diameter.

Conductors  - 4

Application - Ruggedized Commercial Military

Overall Width - .828 in

Overall Height - .828 in

Overall Length - 2.312 in

Contact Diameter - .285 in

Shell Material - Plastic

Contact Material - Nickel Plated Beryllium Copper

Standard - MIL-C-9177

Alternate P/N - M9177/3-1 U-92A/U

Solder Contacts Terminals - Pre-tinned over Nickel Plating

Contact Resistance - < .02 O

Insulation Resistance - > 1,000 mO

Dielectric Withstanding Voltage - M9177/3-1 U-92A/U

Insertion Force Maximum - 13 lb

Withdrawl Force - 6 to 10 lb
